Description
Antenne VHF et UHF Sirio HP-2070 (P/N: 2210305.05)
| Type: | VHF: 1/4 λ |
| UHF: 5/8 λ | |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | VHF: 141-149 MHz |
| UHF: 422-447 MHz (ajustement possible en 446 MHz) | |
| Systems: | 2m-HAM, 70cm-HAM, ORBCOMM M2M, TETRA |
| Gain: | VHF: 0 dB ref. to a λ/4 whip |
| UHF: 2 dB ref. to a λ/4 whip | |
| Max Power: | VHF: 150 W (CW) |
| UHF: 100 W (CW) | |
| Grounding protection: | DC-Ground |

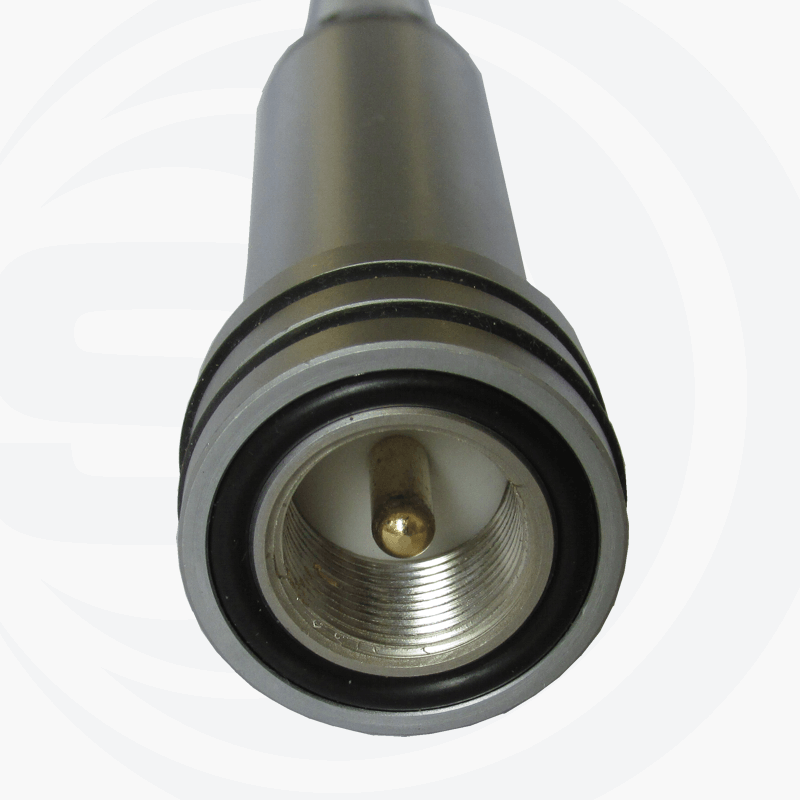

| Connector: | UHF-male (PL-259) |
| Materials: | Chromed brass, Stainless Steel 17/7 PH, Nylon |
| Height (approx): | 445 mm / 1.46 ft |
| Weight (approx): | 270 gr / 0.6 lb |
| Mounting type: | On-Connector |
En VHF Plan de masse nécessaire
En UHF peut fonctionner aussi bien avec ou sans plan de masse
